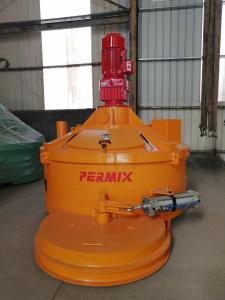

Steel Material Capacity Refractory Planetary Mixer Fast Discharging Easy Operation

Brand Name : PERMIX

Model Number : PMC2000

Certification : CE

Place of Origin : JIAOZHOU CHINA

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 5-10 units per month

Delivery Time : 15-20 days

Packaging Details : Export Standard Package

Material : Steel

Input capacity : 3000L

Weight : 9200kgs

Bottom Scraper QTY : 3

Side Scraper QTY : 1

Color : Orange

Contact Now

PMC2000 Refractory Planetary Mixer Fast Discharging Easy Operation Short mixing time

Features of Planetary mixer


Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. Cylinder with special seal structure and have the pressure or vacuum stirring. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.


The mixing track as follows.

Technical Specification
ITEM/(PMC) PMC
50		 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1250		 PMC
1500		 PMC 2000 PMC
2500		 PMC
3000		 PMC 4000
Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 160
Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
Dimension (L*W*H) mm 950*
790*
1200		 1664*
1453*
1487		 1670*
1460*
1620		 1860*
1650*
1780		 1870*
1870*
1855		 2230*
2080*
1880		 2580*
2340*
2195		 2891*
2602*
2237		 3058*
2756*
2395		 3223*
2902*
2470		 3625*
3230*
2695		 3893*
3550*
2875		 3893*
3550*
3085		 4594*
4150*
3634
